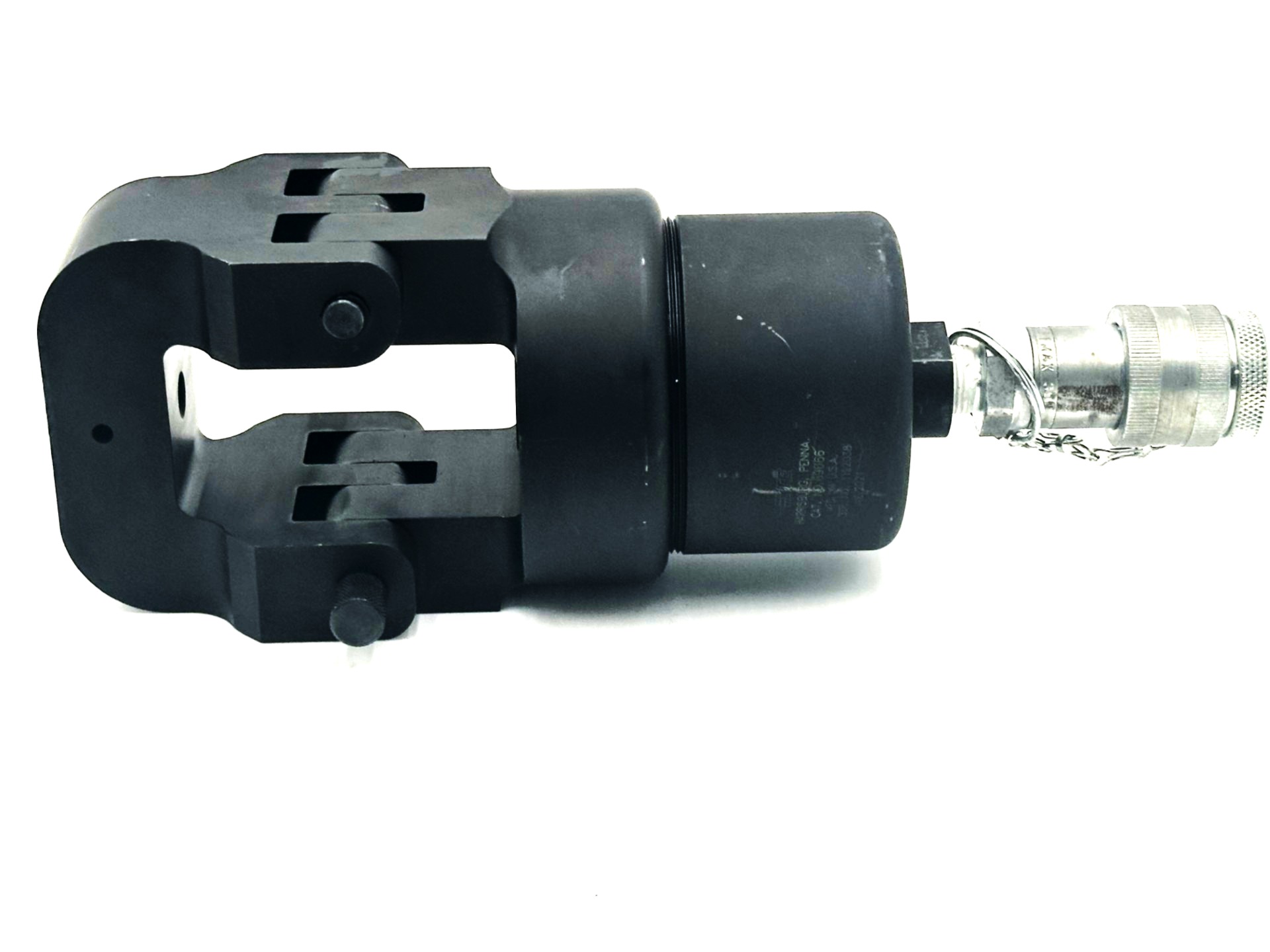

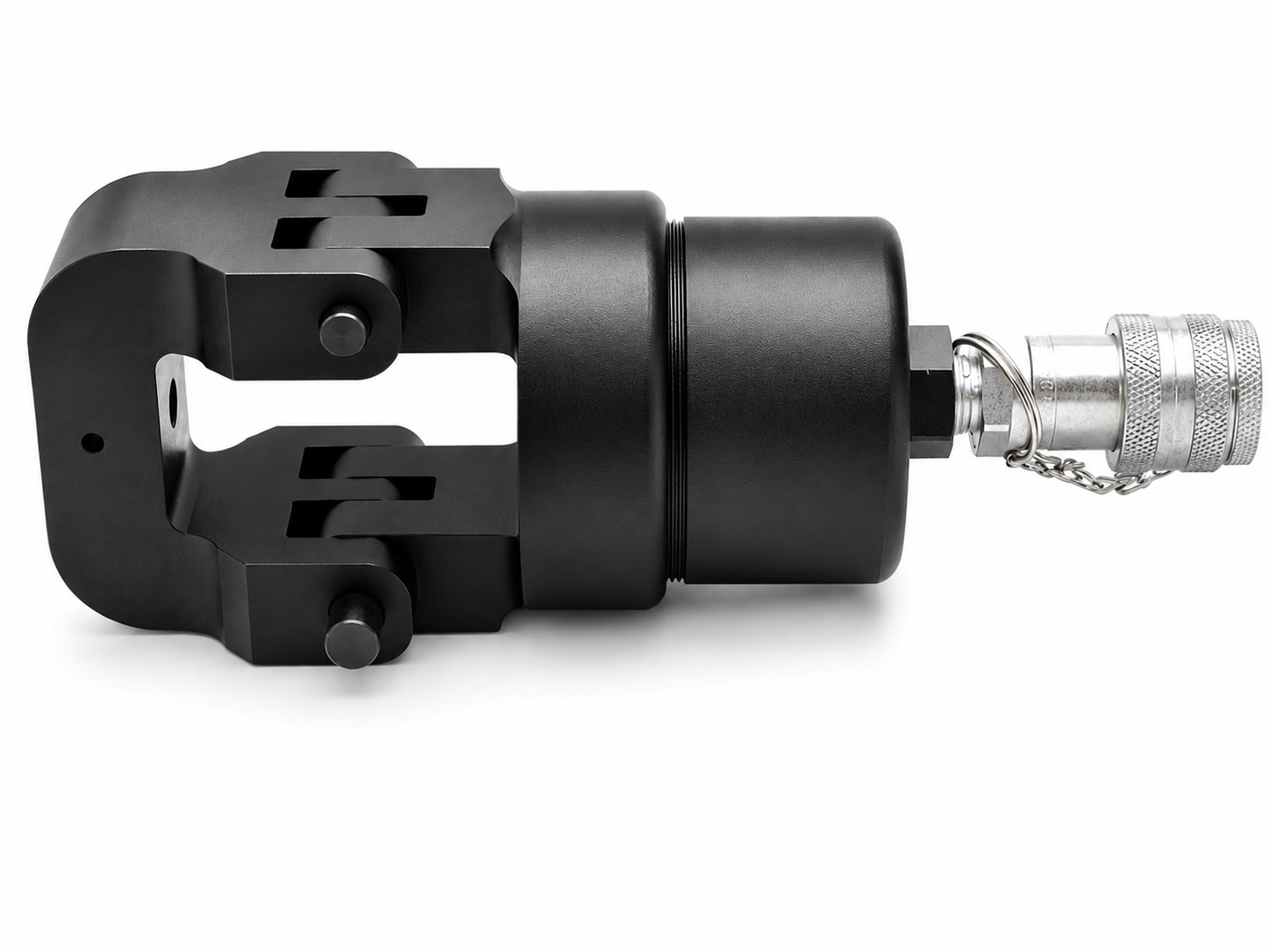

TE Connectivity 69066 Hydraulic Crimping Head
The TE Connectivity 69066 DYNA-CRIMP™ Hydraulic Crimping Head is a heavy-duty, interchangeable crimp head engineered for precision crimping of large-gauge copper and aluminum terminals and splices in aerospace, defense, automotive, utility, and industrial environments. Designed to operate with TE hydraulic power units or hand pumps at up to 8,200 psi (565 bar), it accommodates a wide range of terminal types and wire sizes from 10 AWG up to 4/0 AWG (depending on terminal family).
Crimping is performed by inserting the appropriate matched die set into the head assembly. The operator applies regulated hydraulic pressure using a compatible TE hydraulic pump (such as the 314979-1 Hand Pump or 69120 Power Unit). Dies are locked in place with a yoke assembly and latch pin, ensuring secure alignment during the crimp cycle.
Included Components
TE Connectivity 69066 DYNA-CRIMP™ Crimp Head Assembly (dies sold separately)
Integrated yoke assembly with latch and pivot pins
Quick-connect hydraulic coupling for power unit attachment
Supported Crimp Dies & Applications
AMPLI-BOND™ & PLASTI-GRIP™ Terminals: 8 – 4/0 AWG
TERMINYL™ Terminals & Splices: 1/0 – 4/0 AWG
Pre-Insulated AMPOWER™ Terminals: up to 1/0 AWG
Nylon Heavy-Duty Pre-Insulated Terminals: 8 – 1/0 AWG
COPALUM® Sealed Terminals & Splices: Aluminum 8 – 1/0 AWG; Copper 10 – 2 AWG
Operational Highlights
Rated for 8,000 – 8,400 psi hydraulic operating pressure
Interchangeable head design allows rapid die changes for different terminals
Yoke design enables rotation for splice installation and secure die seating
Compatible with TE hydraulic hand pumps and power units for reliable operation
Built for long-term service with hardened steel components and replaceable seals
Condition and Warranty for New Surplus Tools
This tool is sold as a new surplus item, meaning it is unused, in excellent condition, and meets the manufacturer's original specifications. New surplus tools are new but not purchased directly from the manufacturer and may show minor cosmetic imperfections due to storage, handling, or routine function testing. As part of our commitment to quality, all tools undergo functional testing upon receipt and before shipping to ensure they meet performance requirements. All new surplus tools include a 90-day warranty covering defects in materials and workmanship under normal use. Please note that the warranty does not cover cosmetic wear, misuse, or improper use of the tool.
