Snap-on/ATI Tools ATI520CGC Pull Tester Calibration Kit - Top Flight Tools

Snap-on/ATI Tools ATI520CGC Pull Tester Calibration Kit

Availability:Out of Stock
4920-00-949-9409
Snap-on/ATI Tools, Pull Testers
Condition: Used
Do you want to be notified when this product is back in stock?
Free 2-Day FedEx shipping on all US orders.

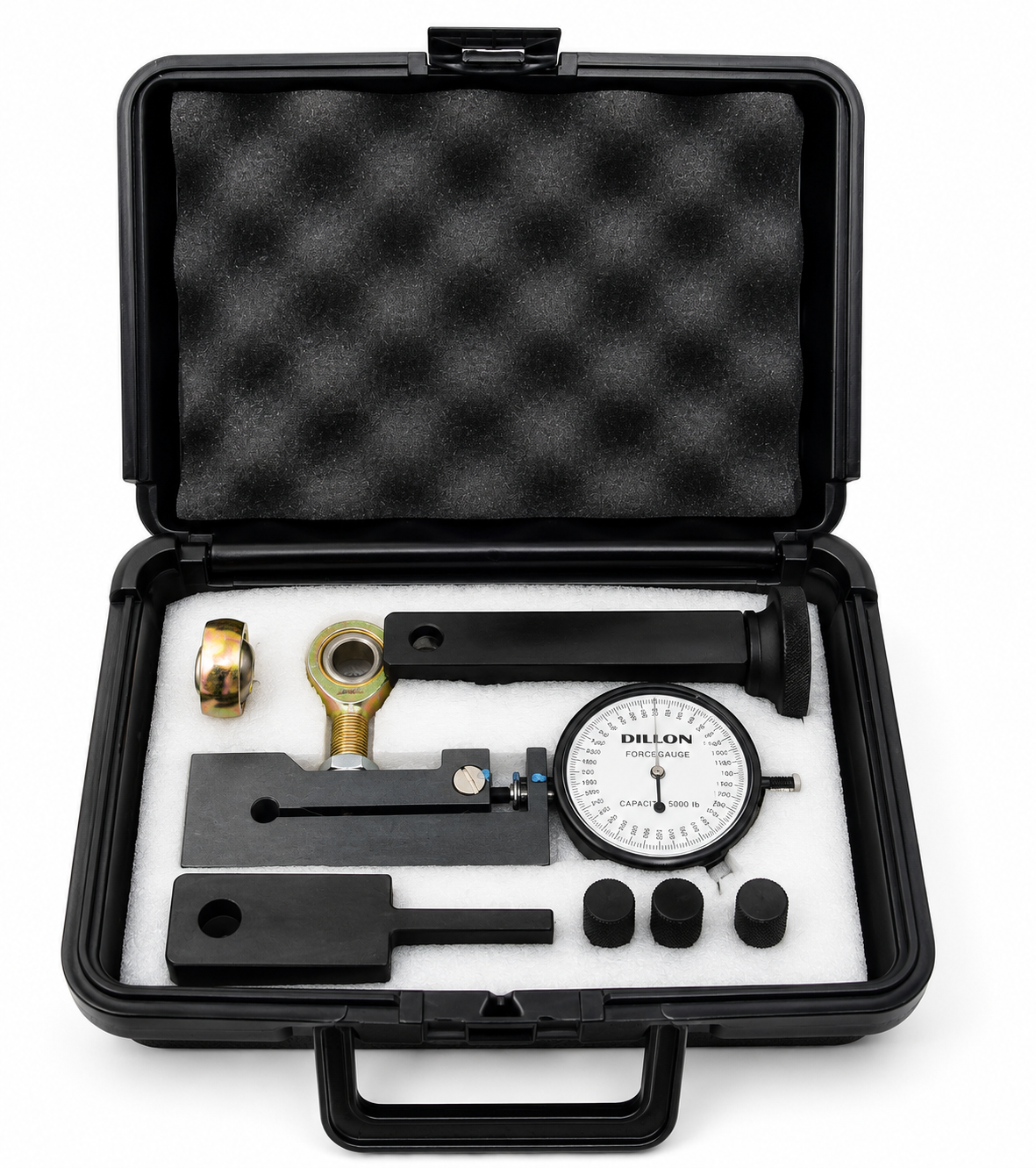

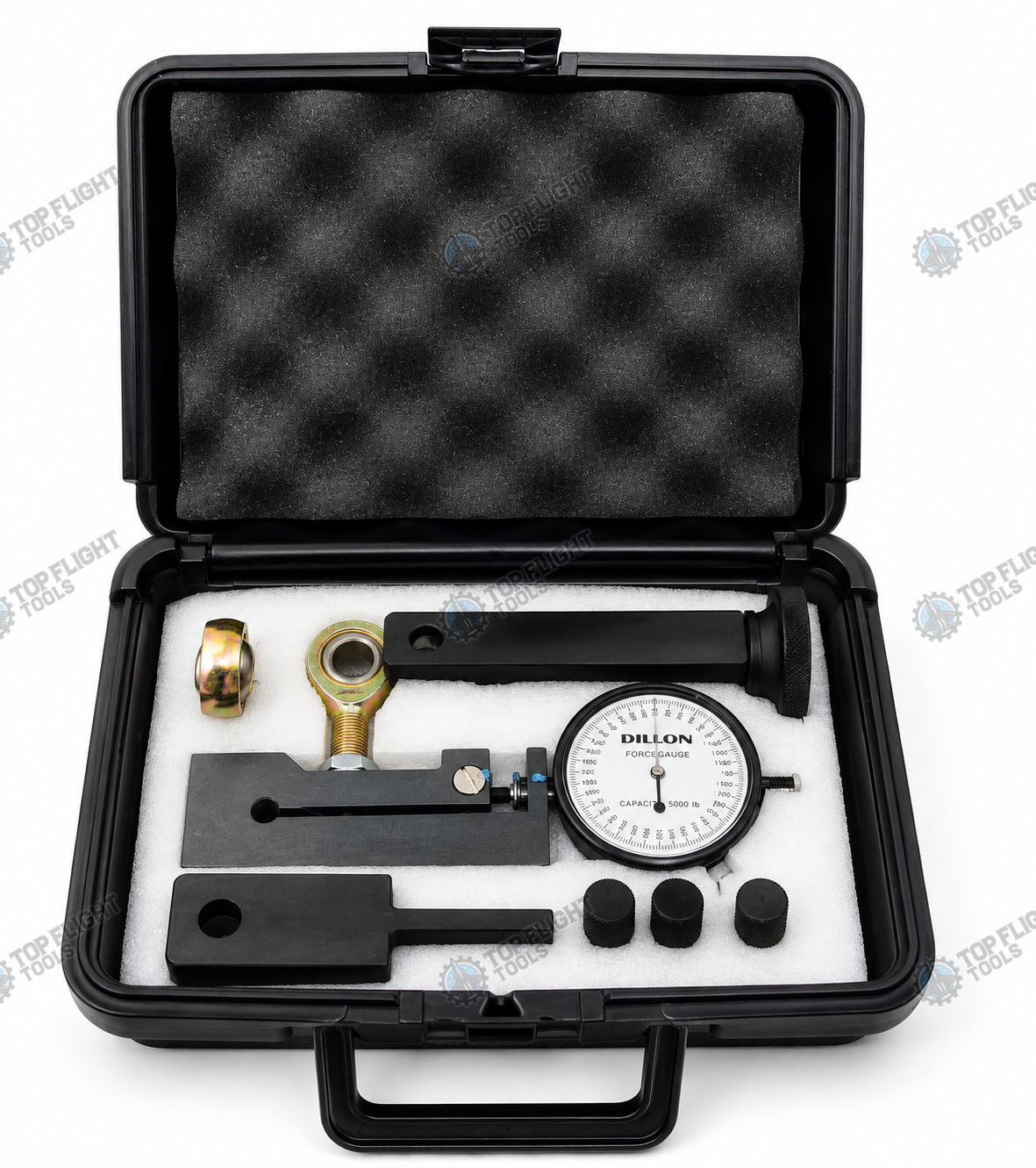

The ATI520CGC Pull Tester Calibration Kit is designed for precise calibration of ATI520CT and ATI520CTK Portable Cable Terminal Pull Testers, ensuring compliance with MIL-DTL-83420 testing standards. This kit provides all the specialized tools needed to verify and adjust pull tester gauge readings for carbon steel wire rope cable sizes ranging from 1/16" to 1/4".

By using the ATI520CGC kit, technicians can set and confirm pull tester gauge markers to the exact proof-load values for each cable size—288 lbs, 552 lbs, 1,200 lbs, 1,680 lbs, 2,520 lbs, 3,360 lbs, and 4,200 lbs—corresponding to 60% of rated cable strength. This ensures accurate tensile testing results in aerospace, defense, and industrial applications.

Kit Contents (Part Numbers):

  • ATI520CGC-4 – Calibration Kit Pin (Qty 2)

  • ATI520CGC-8 – Hook Adapter

  • ATI520CGC-5 – Calibration Kit Pin (Qty 1)

  • ATI520CGC-1 – Screw

  • ATI520CGC-2 – Washer

  • ATI520CGC-3 – Vise Adapter

  • ATI520CGC-6 – Precision Force Gauge

  • Calibration Reference Sheet – For accurate proof-load settings per cable size

Functionality:
The ATI520CGC kit allows the operator to attach the precision force gauge between the pull tester’s vise adapter and hook adapter, remove slack from the linkage, and adjust tension screws until the gauge readings align with the official calibration reference values. This ensures the pull tester delivers repeatable, traceable results, critical for compliance with stringent aerospace maintenance protocols.

Applications:

  • Aerospace cable terminal proof tester calibration

  • MIL-DTL-83420 carbon steel wire rope testing compliance

  • Maintenance and quality assurance in aviation, defense, and industrial facilities

Condition and Warranty for Used Tools:
