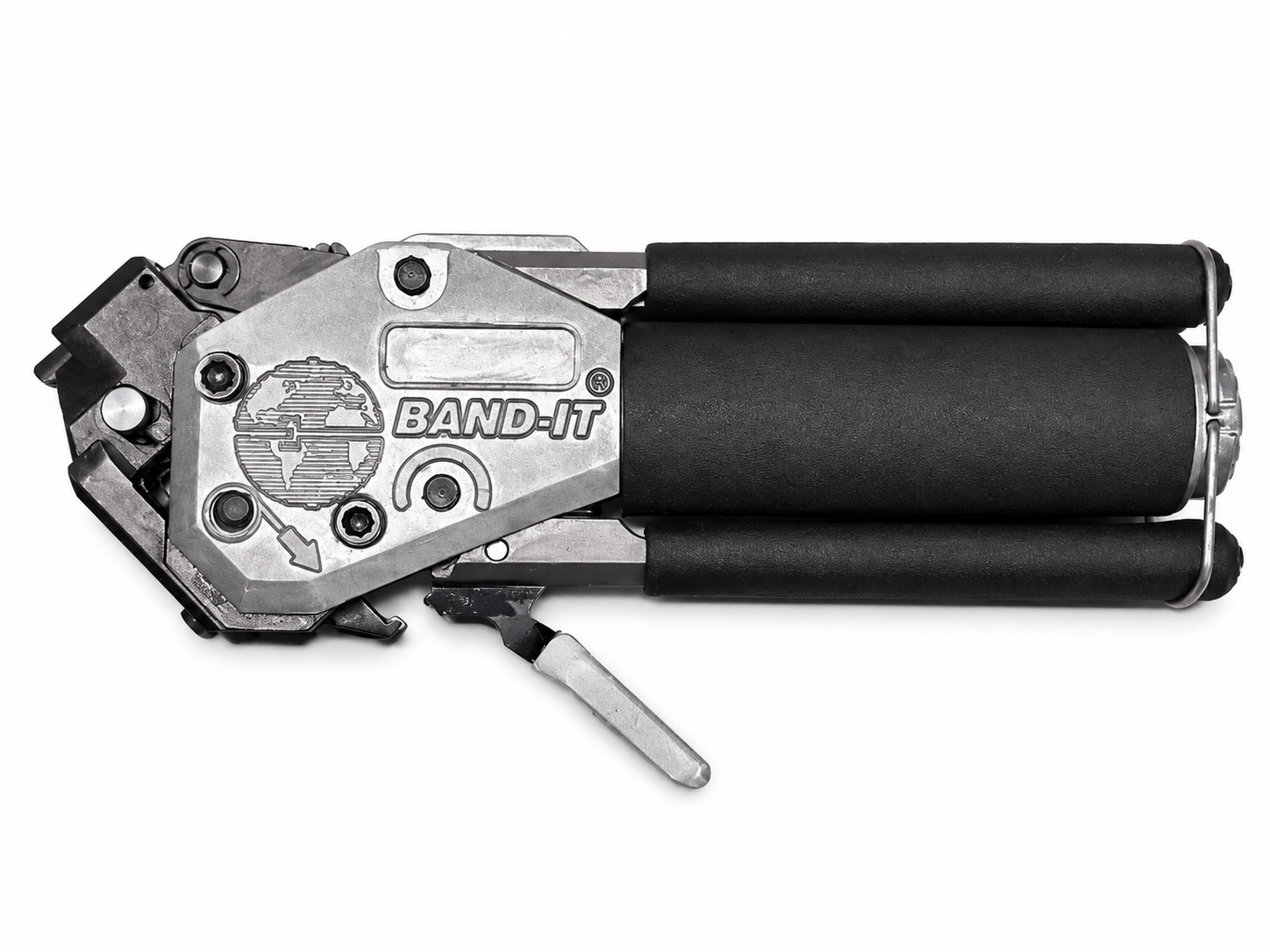

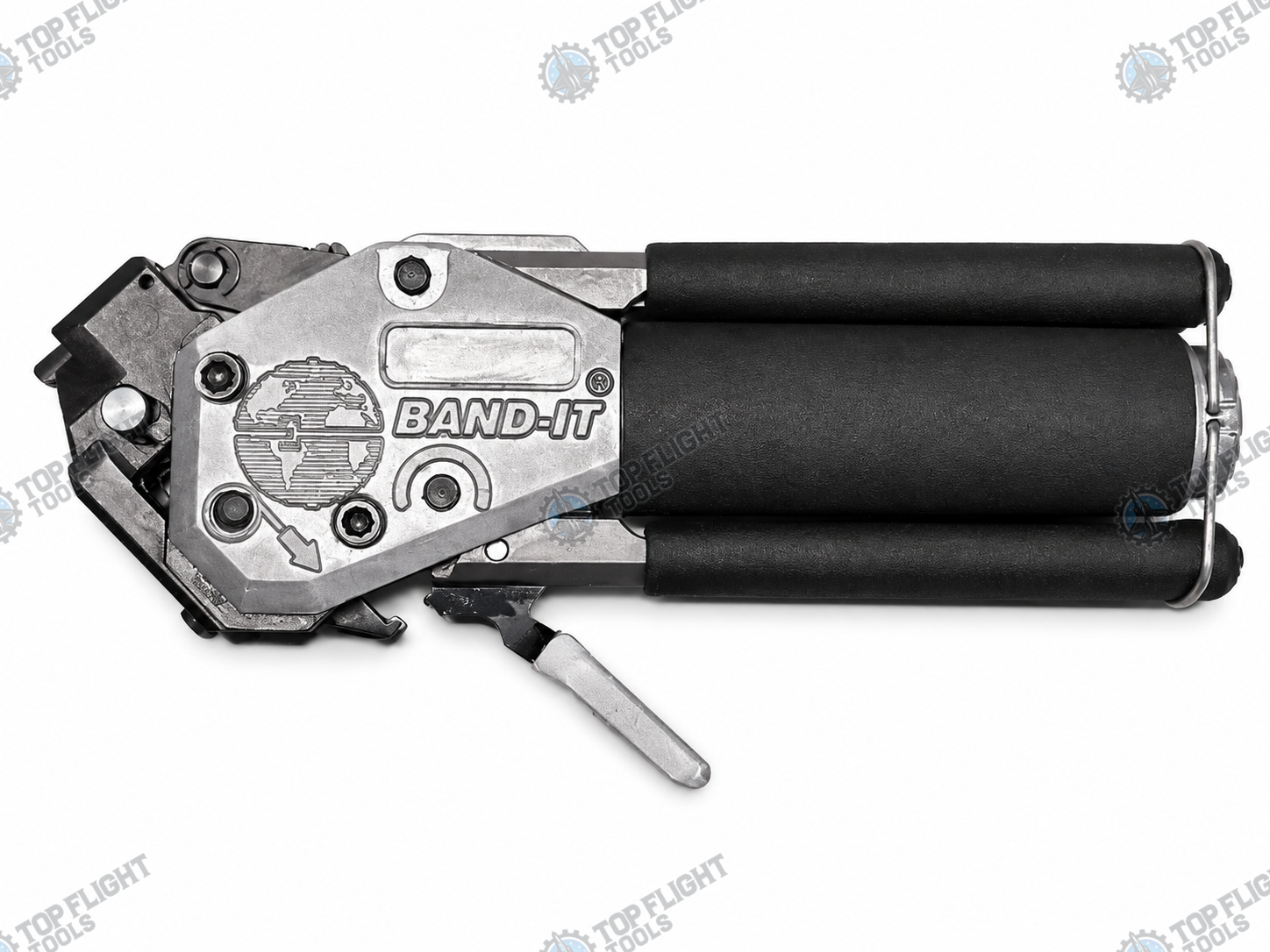

Glenair 600-058 / BAND-IT A40199 Tie-Dex II Hand Banding Tool | Used
The Glenair 600-058 / BAND-IT A40199 Tie-Dex II Hand Banding Tool is designed for standard Tie-Dex clamping bands 600-052 and 600-090. This tool is used for EMI/RFI shield terminations in aerospace, defense, MIL-DTL-38999 connector backshell assemblies, aircraft wiring harnesses, and high-reliability cable assemblies.
The 600-058 operates in a 100 to 180 lb tension range and is typically calibrated at 150 lbs ± 5 lbs for most shield termination applications. This listing is for a used tool, functionally tested before shipment.
The Glenair 600-058 corresponds directly to the BAND-IT® A40199 Tie-Dex II® tool and is specifically designed for use with .240-inch wide standard Tie-Dex® bands. The tool should only be used with genuine Glenair / BAND-IT® bands to ensure proper operation and to prevent premature tool wear or damage.
This aerospace-qualified hand tool features a controlled tensioning mechanism that allows the operator to gradually compress the band using short, even strokes until the handle locks into position, indicating proper band tension has been achieved. The integrated cut-off lever simultaneously locks the buckle and trims excess band material, producing a clean, secure shield termination.
Compatible With
This Glenair 600-058 / BAND-IT A40199 tool is designed for standard Tie-Dex clamping bands, including:
- Glenair 600-052 standard clamping bands
- Glenair 600-090 standard clamping bands
Technical Docs
Glenair 600-058 / BAND-IT A40199 Technical Specifications
Field | Value |
|---|---|
Manufacturer | Glenair / BAND-IT |
Glenair Part Number | 600-058 |
BAND-IT Part Number | A40199 |
Product Type | Tie-Dex II Standard Hand Banding Tool |
NSN | 5120-01-357-6878 |
Compatible Bands | 600-052 and 600-090 standard clamping bands |
Tension Range | 100 to 180 lbs |
Recommended Calibration | 150 lbs ± 5 lbs |
Tool Weight | 1.18 lbs |
Condition | Used |
Prefer new surplus condition?
View the new surplus Glenair 600-058 / BAND-IT A40199 Micro Banding Tool .
Condition and Warranty for Used Tools:
This tool is sold as a used item and has been verified to be in good working condition as per the manufacturer's specifications. While it may show signs of wear consistent with previous use, its functionality and performance meet operational standards. All used tools include a 90-day warranty covering defects in materials and workmanship under normal use. Please note that the warranty does not cover cosmetic wear, misuse, or improper operation of the tool.
