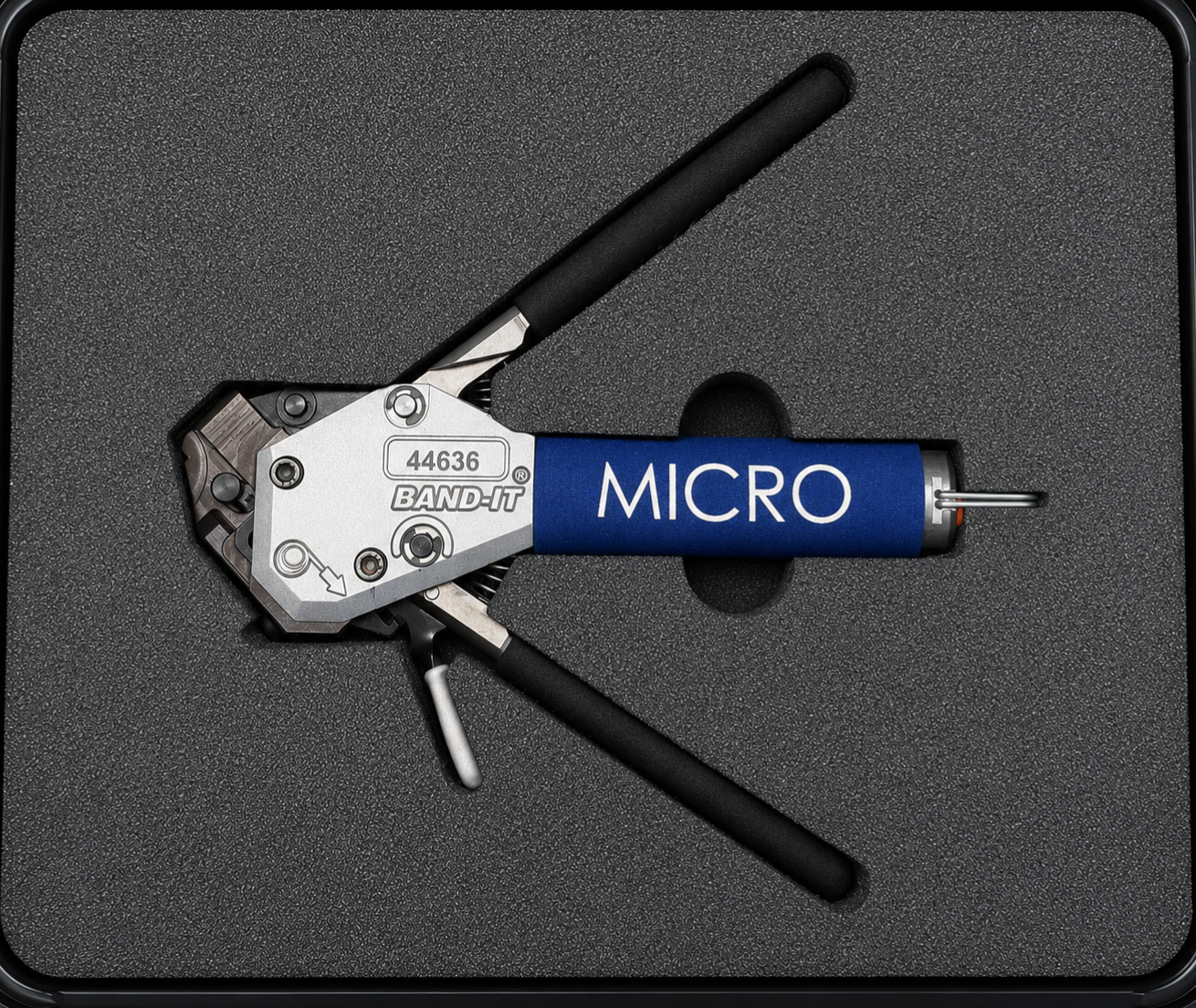

Glenair 600-061 / BAND-IT A30199 Tie-Dex II Micro Banding Tool | New Surplus
The Glenair 600-061 / BAND-IT® A30199 Tie-Dex II® Micro Banding Tool is a precision manual banding tool engineered for the installation of micro-width EMI/RFI shield termination bands used in aerospace, military, avionics, and high-performance electrical harness assemblies. Designed for reliable shield grounding and cable retention applications, the tool provides controlled band tensioning and clean cut-off performance for repeatable high-quality terminations.
The Glenair 600-061 corresponds directly to the BAND-IT® A30199 Tie-Dex II® Micro Banding Tool and is specifically designed for use with .120-inch wide micro Tie-Dex® bands, commonly referred to throughout the aerospace industry as 1/8-inch bands. The tool should only be used with genuine Glenair / BAND-IT® bands to ensure proper operation and prevent premature tool wear or damage.
This aerospace-grade hand tool utilizes a controlled tensioning mechanism that allows the operator to progressively tighten the band using short, even strokes until calibrated tension is achieved. Once tensioned, the integrated cut-off lever simultaneously locks the buckle and trims excess band material, producing a secure and professional shield termination.
The 600-061 / A30199 is widely recognized as a 1/8-inch banding tool for compact EMI shield termination applications and is commonly used in aircraft harness manufacturing, military electronics, M85049 backshell shield terminations, defense systems, motorsports wiring, and other mission-critical cable assembly applications where compact shield termination solutions are required.
Compatible With
The Glenair 600-061 / BAND-IT A30199 Tie-Dex II Micro Banding Tool is designed for use with micro clamping bands, including:
- Glenair 600-057 micro clamping bands
- Glenair 600-083 extended-length micro clamping bands
Technical Docs
Glenair 600-061 / BAND-IT A30199 Technical Specifications
Field | Value |
|---|---|
Manufacturer | Glenair / BAND-IT |
Glenair Part Number | 600-061 |
BAND-IT Part Number | A30199 |
Product Type | Tie-Dex II Micro Hand Banding Tool |
NSN | 5120-01-397-9246 |
Compatible Bands | 600-057 and 600-083 micro clamping bands |
Band Width | 0.120-inch micro bands |
Tension Range | 50 to 85 lbs |
Recommended Calibration | 80 lbs ± 5 lbs |
Tool Weight | 1.18 lbs |
Condition | New Surplus |
Looking for a lower-cost option?
View the used Glenair 600-061 / BAND-IT A30199 Micro Banding Tool .
Condition and Warranty for New Surplus Tools:
This tool is sold as a new surplus item, meaning it is unused, in excellent condition, and meets the manufacturer's original specifications. New surplus tools are new but not purchased directly from the manufacturer and may show minor cosmetic imperfections due to storage, handling, or routine function testing. As part of our commitment to quality, all tools undergo functional testing upon receipt and before shipping to ensure they meet performance requirements. All new surplus tools include a 90-day warranty covering defects in materials and workmanship under normal use. Please note that the warranty does not cover cosmetic wear, misuse, or improper tool operation.
