Snap-on/ATI Tools ATI520JK Cable Swaging Kit - Top Flight Tools

Snap-on/ATI Tools ATI520JK Cable Swaging Kit

Availability:Out of Stock
5130-00-712-4855
Snap-on/ATI Tools, Cable Swager
Condition: New Surplus
Do you want to be notified when this product is back in stock?
Free 2-Day FedEx shipping on all US orders.

The ATI520JK AT520JK Cable Terminal Swaging Kit is a complete, pneumatically powered system engineered for precision swaging of MS sleeve-type and ball-end cable terminals in aerospace, defense, marine, and industrial environments. It accommodates cable sizes from 1/16" (0.0625 in) up to 1/4" (0.25 in), with included dies covering double-shank, single-shank, plain ball-end, and sleeve-type terminals.

Swaging is performed using matched die sets inserted into the swager’s yoke cavity. The operator applies regulated air pressure (minimum 90 psi, via a ≥3/8" I.D. airline) while rotating the cable or terminal during swaging to ensure uniform metal deformation and optimal terminal seating.

Included Components

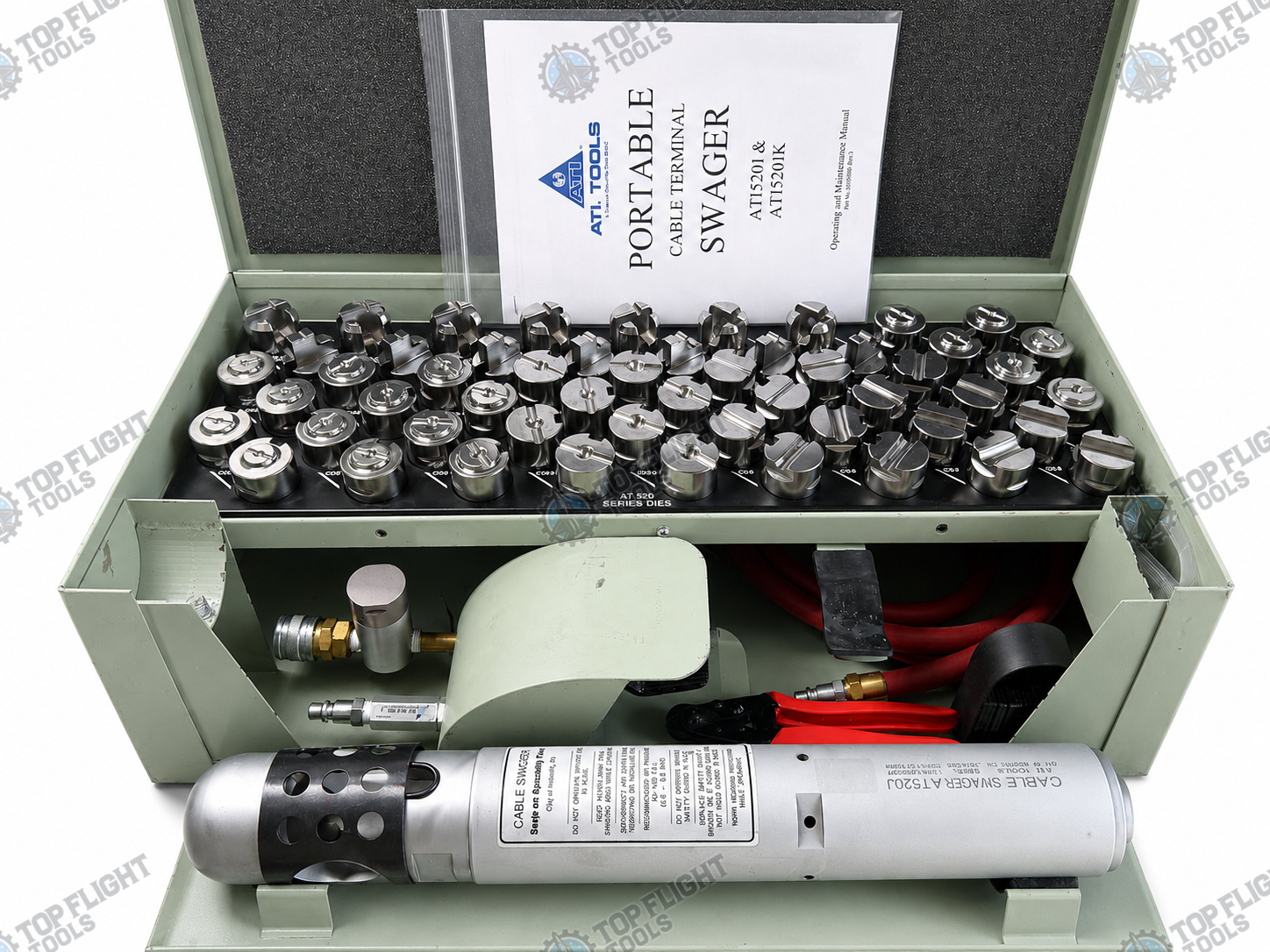

  • ATI520J Pneumatic Cable Terminal Swager (hand-held or bench-mount capable)

  • ATI520SG “GO” Swage Gauge for quality verification

  • Felco C7 Cable Cutters

  • ATISP1001 Turnbuckle Wrench

  • ATI520SP Spacer

  • ATI520CKB Carrying Case

  • Air hose and foot control assembly for pneumatic operation

  • Complete matched die set for all supported terminal types

Swaging Dies Supported:

  • Double-shank ball-end terminals: ATI520CDB-2 through ATI520CDB-6 (1/16" to 3/16" cables)

  • Single-shank ball-end terminals: ATI520CSB-2 through ATI520CSB-6 (1/16" to 3/16")

  • Plain ball-end terminals: ATI520CB-2 to ATI520CB-4 (1/16" to 1/8")

  • MS sleeve-type terminals: ATI520CS-2 through ATI520CS-8 (1/16" to 1/4")

  • Cable cut-off & trim dies: ATI520CD-2 through ATI520CD-8, with matching punches ATI520CP-2 through ATI520CP-8

Operational Highlights:

  • Pneumatic drive ensures consistent swaging force and repeatable results

  • Rotational swaging technique (180° arcs or full revolutions) yields uniform, specification-compliant swage profiles while reducing die wear

  • Integrated safety guard (must be in place during operation)

  • Built-in tool oiler: refill every eight hours with air-tool lubricant for optimal service life

Applications:
Ideal for aerospace, aviation maintenance, marine rigging, defense systems, and industrial cable fabrication, where precision terminal installation is critical.

Condition and Warranty for New Surplus Tools:
This tool is sold as a new surplus item, meaning it is unused, in excellent condition, and meets the manufacturer's original specifications. New surplus tools are new but not purchased directly from the manufacturer and may show minor cosmetic imperfections due to storage, handling, or routine function testing. As part of our commitment to quality, all tools undergo functional testing upon receipt and before shipping to ensure they meet performance requirements. All new surplus tools include a 90-day warranty covering defects in materials and workmanship under normal use. Please note that the warranty does not cover cosmetic wear, misuse, or improper use of the tool.
