Introduction

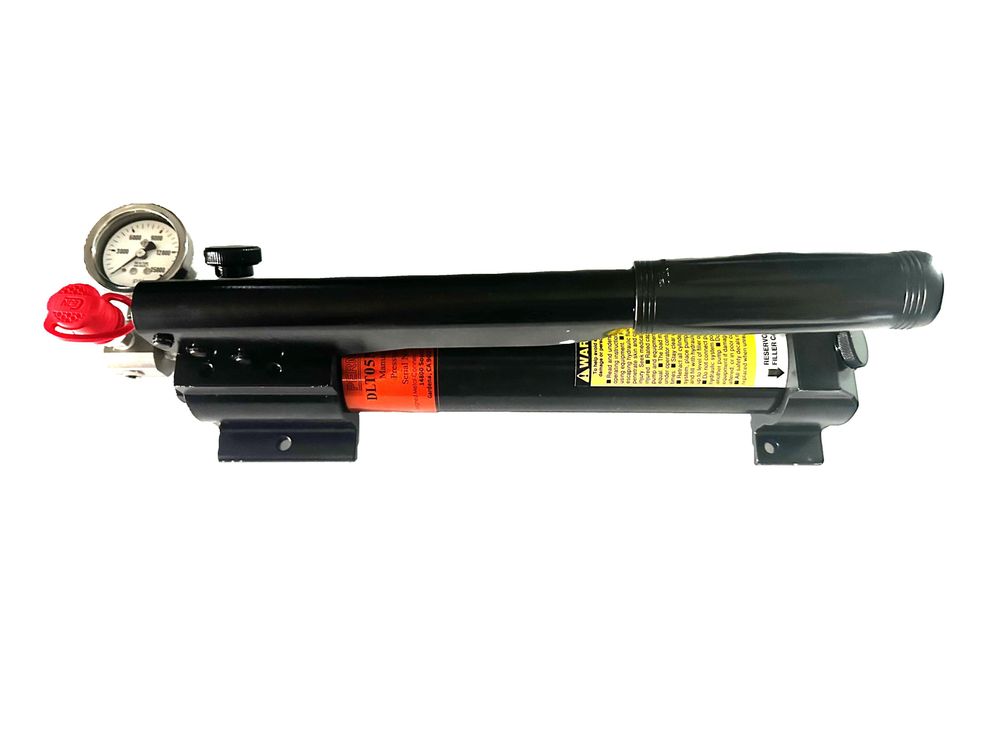

When it comes to precision hydraulic swaging in the field, one tool stands above the rest: the DLT05MAPM1000 Manual Hydraulic Pump. Designed specifically for aerospace and defense applications, this compact, robust manual pump delivers up to 10,000 psi of reliable power—making it the ideal partner for PypLok, Permaswage, PowerLok, DeutschLite, and DeutschLok tooling.
Whether you’re on a flight line or in a repair hangar, this pump ensures portable, manual operation without sacrificing performance or safety.
Key Specifications and Features
The DLT05MAPM1000 isn’t just another pump—it’s engineered for durability and efficiency:
Dimensions: 4" wide × 5.5" high × 13.5" long
Weight: Just 6.6 lbs for optimal portability
Operating Pressure: Calibrated to 10,000 ± 250 psi
Oil Capacity: 20 cubic inches of MIL-H-5606 hydraulic oil
Construction: Includes high-grade components like a tee fitting, hydraulic gauge (0–15,000 psi),
How It Works
Using the DLT05MAPM1000 is straightforward:
Connect the hydraulic hose to the pump and your swage tool.
Close the manual relief valve.
Pump the handle to build pressure. The internal pop-off valve will release pressure automatically at 10,000 psi.
Relieve pressure by reopening the manual relief valve after the swage operation.
Built-In Safety for High-Pressure Operation
Swaging requires extreme force, and this pump is designed with safety at its core:
Relief Valve: Prevents over-pressurization.
Manual Bleed: Allows for quick pressure release.
Material Guidelines: Hoses and couplers must be compatible with hydraulic fluids and rated for 10,000 psi to prevent rupture or injury.
Preventive Maintenance and Troubleshooting
To maintain peak performance, regular preventive maintenance is essential:
Lubricate pivot points with No. 10 motor oil or grease.
Check fluid levels with all cylinders fully retracted.
Bleed air from the system by cycling the swage tool multiple times with it positioned lower than the pump.
Flush and refill the reservoir annually using high-grade Power Team hydraulic fluid
A detailed troubleshooting guide in the manual addresses common issues like fluid leakage, spongy handle action, and loss of pressure—with step-by-step solutions.
Spare Parts and Repair Kits
Keeping your pump in working order is made easy with the DLT05MAPM1020 Repair Kit, which includes essential components like:
O-rings
Backup washers
U-cups
Compression springs
Valve screws
For more extensive repairs, a full spare parts breakdown and exploded diagram is provided in the manual
Where the Pump Fits in Your System
The DLT05MAPM1000 manual pump is the recommended hydraulic source for the DLT-series swage heads operating at 10,000 psi, as listed in the Permaswage Head Assy Inspection Criteria. It is ideal for use with heavy-duty tubing sizes ranging from -03 to -24 Permaswage Head Assy
Final Thoughts
If you're looking for a dependable, rugged, and field-ready hydraulic pump that can handle the toughest swaging jobs—look no further than the DLT05MAPM1000. Its compact size, high-pressure capability, and comprehensive service support make it the top choice for maintenance professionals in the aerospace industry.
