Permaswage DLTFRPSKT3001 Field Repair Tool Kit

December 5, 2025
Permaswage DLTFRPSKT3001 Field Repair Tool Kit

The DLTFRPSKT3001 is a Permaswage® radial swaging field repair kit, engineered for precision tube repairs in demanding aerospace environments. Supporting tubing sizes from 1/4" to 3/4" (sizes -04 to -12), this comprehensive kit comes packaged in a rugged, portable case with every tool and accessory required for successful field swaging. You can purchase the complete DLTFRPSKT3001 Field Repair Kit directly from Top Flight Tools here: _https://topflighttools.com/product/dltfrpskt3001_

✅ Supported Tube Sizes

  • 1/4" (Size -04)

  • 3/8" (Size -06)

  • 1/2" (Size -08)

  • 5/8" (Size -10)

  • 3/4" (Size -12)

⚙️ Tooling Pressure

  • Tool Pressure Rating: Up to 10,000 psi

  • System Compatibility: For systems operating at up to 3,000 psi

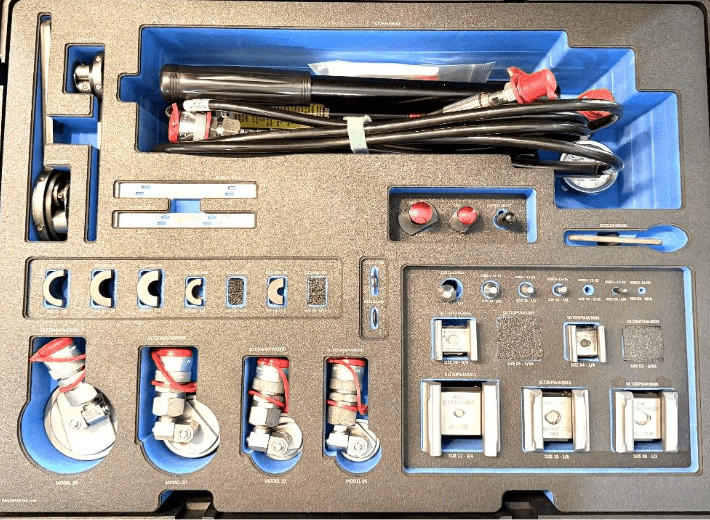

📦 Complete Kit Contents for DLTFRPSKT3001

Here’s the verified list of all components included in the kit:

🔧 Power Units

  • DLT05MAPW0000 – Power Unit Model 5

  • DLT10MAPW0000 – Power Unit Model 10

  • DLT20MAPW0000 – Power Unit Model 20

  • DLT30MAPW0000 – Power Unit Model 30

🧱 Swage Head Assemblies

  • DLT05PSHA3004 – Head Assy Size 4 STD

  • DLT10PSHA3006 – Head Assy Size 6 STD

  • DLT20PSHA3008 – Head Assy Size 8 STD

  • DLT20PSHA3010 – Head Assy Size 10 STD

  • DLT30PSHA3012 – Head Assy Size 12 STD

🔩 Deburring Stems

  • D9851-13-04 – Stem Assy Size 04

  • D9850-13-06 – Stem Assy Size 06

  • D9850-13-08 – Stem Assy Size 08

  • D9850-13-10 – Stem Assy Size 10

  • D9850-13-12 – Stem Assy Size 12

🧪 Inspection Gages

  • D12-9982-04 – Gage Size 04

  • D12-9982-06 – Gage Size 06

  • D12-9982-08 – Gage Size 08

  • D12-9982-10 – Gage Size 10

  • D12-9982-12 – Gage Size 12

🛠️ Cutting & Deburring Tools

  • D1520-14-06 – Deburring Tool 4-6

  • D1520-14-08 – Deburring Tool 8-12

  • D1231-001 – Chipless Cutter 3-6

  • D1231-004 – Chipless Cutter 8-12

✏️ Marking Tools

  • DLT15303-01-01 – Marking Tool 3-6

  • DLT15303-01-04 – Marking Tool 8-14

  • DLT15303-01-06 – Marking Pen

🔧 Additional Tools

  • DLT15303-01-04 – Hex Key

  • DLT05MAPM1001 – Pump Assy 10,000 psi Manual

  • SOP6-01-05 – Installation Manual (Tooling)

  • SOP6-00-05 – Instruction Manual (Pump)

🧳 Kit Highlights

  • Full coverage for 5 critical tube sizes

  • Manual, high-pressure pump (no external power needed)

  • Tube prep, marking, cutting, swaging, and inspection tools included

  • Lightweight, portable, and aircraft-ready

  • Ideal for AOG and depot-level maintenance teams

🛒 Order with Confidence Top Flight Tools offers this exact configuration (Rev F) of the DLTFRPSKT3001 for sale

📞 Contact us now to check availability and lead times.
