Introduction

Generation 2 Permaswage® swage dies are the latest evolution in DLT tooling, offering improved durability, reliability, and long-term performance while maintaining full compatibility with both Generation 1 and Generation 2 swage heads.

For aerospace, MRO, and high-pressure fluid system applications, choosing the correct swage die is critical. In this guide, we’ll break down:

• What Generation 2 swage dies are
• How part numbers are structured
• Full list of Generation 2 swage die part numbers
• Compatibility with Gen 1 and Gen 2 systems
• What Are Generation 2 Permaswage® Swage Dies?

Generation 2 (Gen 2) swage dies are designed to create precise radial compression on tubing, forming permanent, leak-proof connections in high-pressure systems.

Compared to Generation 1 dies, Gen 2 versions offer:

Improved resistance to wear and deformation Enhanced durability in high-cycle environments More consistent swage performance over time

Despite these improvements, they retain the same envelope dimensions and swage geometry, allowing direct replacement of earlier-generation dies.

How to Identify Generation 2 Swage Dies

The easiest way to identify a Generation 2 die is by the part number prefix.

Example: DLT10PSDI3006 → Generation 1 DLT11PSDI3006 → Generation 2 Part Number Breakdown: DLT10 / DLT11 → System / power unit generation PSDI → Swage Die 3006 → Tube size (-06 / 3/8”) Full List of Generation 2 Swage Die Part Numbers

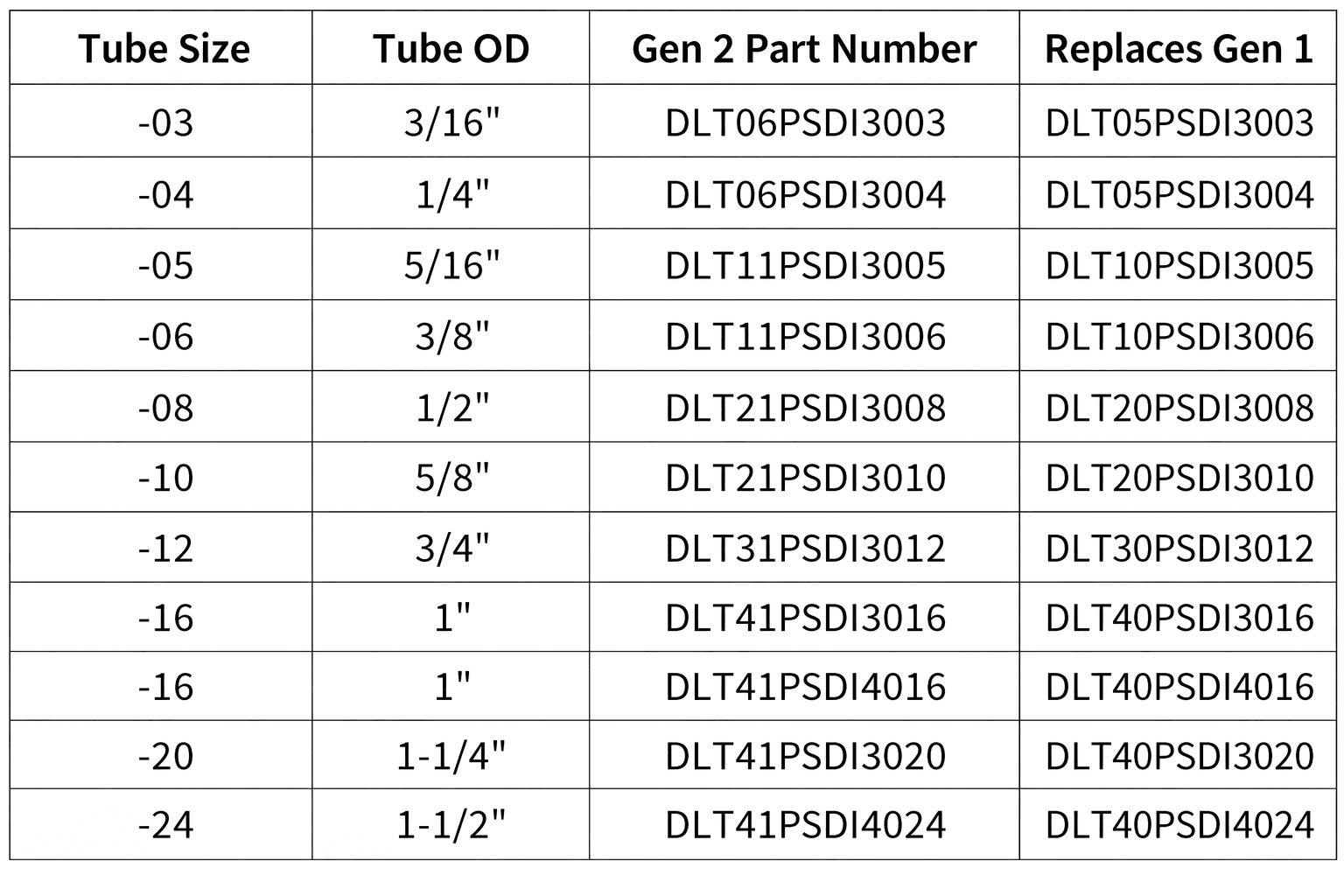

Below is the complete list of standard Generation 2 DLT swage dies:

Compatibility: Gen 1 vs Gen 2 Systems

Understanding compatibility is critical when selecting tooling.

✅ Swage Dies — Fully Interchangeable Gen 1 and Gen 2 dies: Share identical dimensions Use the same swage geometry Can be used in either generation head

👉 A Gen 2 die is a direct replacement for its Gen 1 equivalent.

❌ Swage Heads — Not Interchangeable Gen 1 heads differ from Gen 2 heads Must match the correct system

❌ Power Units — Not Interchangeable Each generation uses a different hydraulic platform Example: DLT11PSDI3006 Swage Die

The DLT11PSDI3006 Generation 2 swage die:

Designed for 3/8" (-06) tubing Provides precise, repeatable radial compression Compatible with: DLT10PSHA3006 (Gen 1 head) DLT11PSHA3006 (Gen 2 head)

It is the direct replacement for:

DLT10PSDI3006 (Generation 1) Inspection and Maintenance Considerations

Even with improved Gen 2 performance, proper inspection is critical:

Verify die halves are matched sets Keep dies clean and free of debris Monitor for: Slot compression Surface wear Cracks (visual and dye penetrant) Why Upgrade to Generation 2 Swage Dies?

Switching to Gen 2 dies provides:

Longer service life More consistent swage quality Reduced downtime due to wear

For high-volume or critical applications, this translates directly into:

Lower operating costs Improved reliability Better inspection pass rates Why Buy from Top Flight Tools?

At ** Top Flight Tools**, we specialize in** Permaswage®** tooling:

New, used, and surplus inventory Fully inspected and verified dies Expert support on compatibility and selection

👉 We don’t just sell part numbers—we make sure you get the right tool for the job.

Conclusion

Generation 2 Permaswage® swage dies provide a clear upgrade in durability and performance while remaining fully interchangeable with Generation 1 dies.

By understanding part numbers and compatibility, you can confidently select the correct tooling and improve long-term results in your swaging operations.
